I’m syncing files from my Android 14 phone to my Synology NAS.

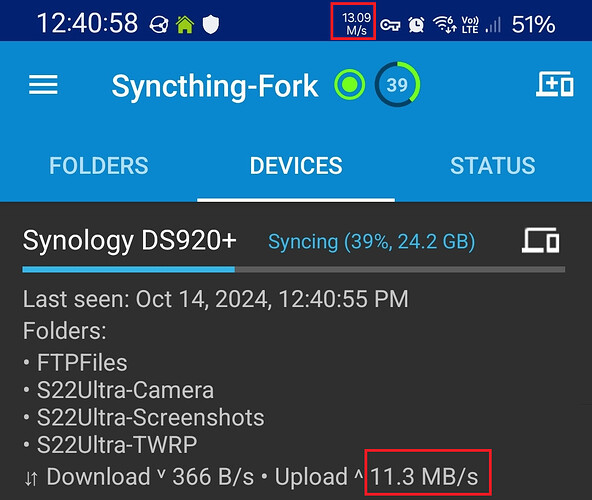

As these are large files (partitions backups made in TWRP) I discovered that speed sync is around 7-times slower than my local WiFi.
So I have 1 Gig/s LAN network with WiFi 6a 5GHz and iPerf shows me that between my phone and NAS there is a throughput around 725 Mbit/s:
Both Syncthing ends are configured in the same way:
NAT Traversal, Local Discovery, Global Discovery, Relaying are enabled.
I tried to disable all except Local Discovery but it seems that the issue here with discovery by broadcast in Android new versions is not resolved: Remote device disconnected - #2 by acolomb
Please open the Web GUI on Android (available from the left slide-out menu) and check what kind of connection is used under the specific remote device. If unsure, a screenshot is always welcome.
Please also keep in mind that speed in the case of Syncthing depends on the hardware as well, as it does more than just sending files in plain form, so you may want to check the resource usage on the NAS too, especially the CPU and I/O, as they may be pegged.
Apart of the pair Android → Synology NAS I have few other devices configured to syncing files to the NAS, like my laptop and here it is TCP LAN connection type so I don’t know why for Android → Synology NAS it is WAN.
Connections Priority is default so it should be LAN used but it isn’t:
Synology NAS is powerfull. It is DS920+ model.
CPU and memory usage when transferring an 11GB file from Android to NAS is very low, the increase in usage compared to idle state is almost unnoticeable.
The same is for Android phone. It is Samsung Galaxy S22 Ultra.
Yeah, this is surely the culprit. Please check if firewall isn’t getting in the way between the two devices. You may want to try hard-coding the IP address or hostname of the NAS on Android (or the other side) and see whether the two can connect with one another. If they cannot, then this means that it’s likely the firewall (or possibly router configuration, such as network isolation or similar).
Alternatively, it may due to local discovery not working on Android, but global discovery should still help with the connection.
In sum, I would try to hard-code the hostname (or the IP address) as follows first.
When testing, make sure that you disconnect and reconnect the devices (e.g. by pausing and unpausing them), as Syncthing won’t switch the connection to a better one right after editing the configuration if it’s already established.
It stopped working.
Can’t get connection Android 14 ↔ Synology NAS if “Enable Relaying” is disabled and if in “Sync Protocol Listen Addresses” is set to tcp4://0.0.0.0:22000, tcp4://:22000.
It used to work for a while, then I changed absolutely nothing and when I restarted Syncthing on Android 14 phone it is permanent Disconnected status.
How are you running Syncthing on your Synology? In case it’s Docker, you should switch your container to host networking mode. Otherwise you’ll end up with two nodes which can’t determine their own LAN IPs.
This document says how to create new network by pressing Add button.
Nothing else.
So it is useless.
All containers are configured by default to use bridge:
but I don’t know how to switch to Host.
If you know then provide clear steps.
But I doubt this is the root cause.
If it would be then how do you explain that other Syncthing device - my laptop is able to connect to Synology NAS using Local Discovery only (second pair presented on my screen with Excel spreadsheet) ?
It’s enough for one side to discover and publish its own LAN IPs. The combination of bridged Docker and Android is known to cause problems because Syncthing can’t see the interface IPs on either side.
In portainer console I added additional network naming it “native” that is outside the scope of my local DHCP on router. So I created network 192.168.1.200/29 with gateway 192.168.1.201 and joined Syncthing container to this network:
If there is a configuration on Syncthing running in docker to listen on particular IP address then it have to be “virtual” IP of the Syncthing docker but not the “real” IP of the host in which docker is running.
In my case:
Syncthing in docker has IP 192.168.1.202
Synology NAS has IP 192.168.1.199
Originally I have a configuration in Syncthing to listen on 192.168.1.119 but I realized it is not running so I had to add 192.168.1.202:
