When trying to recreate the Docker container, the web UI no longer works.

[MrChuw]

On my computer, I run two instances of Syncthing, one through the exe on port 8385 and another in Docker on port 8384. It works perfectly fine, until today when, for some reason, I decided to remove the container to make some configuration changes. After removing it and modifying the settings in the docker-compose.yml file, I tried to bring it up again. It connected to the relay without any errors, but when I tried to access the web UI, it didn’t work.

version: "3"
services:
  syncthing:
    image: syncthing/syncthing:latest
    container_name: Syncthing-Docker
    hostname: SyncThing Docker
    environment:
      - PUID=1000
      - PGID=1000
    volumes:
      - E:\Syncthing Docker:/var/syncthing
    network_mode: host
    restart: unless-stopped

[gadget]

@MrChuw

On my computer, I run two instances of Syncthing, one through the exe on port 8385 and another in Docker on port 8384. It works perfectly fine, until today when, for some reason, I decided to remove the container to make some configuration changes. After removing it and modifying the settings in the docker-compose.yml file, I tried to bring it up again. It connected to the relay without any errors, but when I tried to access the web UI, it didn’t work.

Which hypervisor is being used to host the Docker container?

[MrChuw]

Server: Docker Desktop 4.20.1 (110738)

Engine:
  Version:          24.0.2
  API version:      1.43 (minimum version 1.12)
  Go version:       go1.20.4
  Git commit:       659604f
  Built:            Thu May 25 21:52:17 2023
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.6.21
  GitCommit:        3dce8eb055cbb6872793272b4f20ed16117344f8
 runc:
  Version:          1.1.7
  GitCommit:        v1.1.7-0-g860f061
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0

And wls2.

[gadget]

@MrChuw

And wls2.

WSL 2 (Windows Subsystem for Linux 2) uses an Ubuntu Linux installation for hosting Docker engine.

Your revised YAML file looks normal and you said that you saw a connection to a Syncthing relay, so that makes me think it’s a firewall issue either inside the Ubuntu Linux virtual machine or on the Windows side. But it could also be that Syncthing inside the Docker container is shutting down after trying a relay.

1. Verify that the Syncthing Docker container is still running when you try to access it.
2. Verify that the Syncthing Docker container is actually listening to port 8384.
3. If both steps 1 and 2 are true, then you must rule out firewall and malware scanner issues.

Personally, I’d roll back all changes since it was last working to rule out the container and Docker.

Although you didn’t mention it, I’m assuming that the Windows instance of Syncthing is still accessible on port 8385 and that access is only from the Windows host and not from another device on the LAN.

[MrChuw]

@gadget

Verify that the Syncthing Docker container is still running when you try to access it.

I can modify the settings to add the Windows instance and my cellphone, and I can even use curl on other containers and even on my Raspberry Pi.

@gadget

Verify that the Syncthing Docker container is actually listening to port 8384.

I tested curl on port 8384, and it worked. I also tried changing the port in the .xml file and tried again, and it worked too.

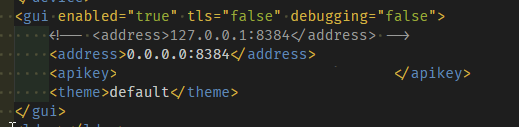

I could use it by just editing the .xml file, but you know, adding a folder would be such a hassle instead of just clicking “accept.”

[gadget]

@MrChuw

I tested curl on port 8384, and it worked. I also tried changing the port in the .xml file and tried again, and it worked too.

Since cURL is able to access Syncthing’s web GUI, what doesn’t work? Did you mean you get an error in a web browser?

[MrChuw]

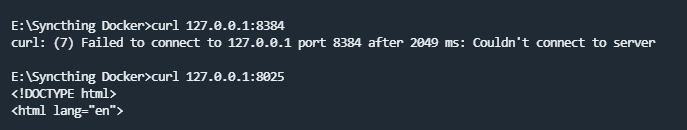

Sorry, I expressed myself poorly. I can use cURL from within the container to the outside, but I can’t do it from outside to inside.

The first one is the port of Syncthing, and the second one is another container.

The first one is the port of Syncthing, and the second one is another container.

[gadget]

@MrChuw

Sorry, I expressed myself poorly. I can use cURL from within the container to the outside, but I can’t do it from outside to inside.

Ah, no problem. In the Syncthing container, what is the output from the command ufw status?

And from the Windows host, does netstat -an show a process listening on port 8384?

[MrChuw]

@gadget

netstat -an

Port 8384 does not appear in netstat.

@gadget

ufw status

iptables -L Output

Chain INPUT (policy DROP)
target     prot opt source               destination
ufw-before-logging-input  all  --  anywhere             anywhere
ufw-before-input  all  --  anywhere             anywhere
ufw-after-input  all  --  anywhere             anywhere
ufw-after-logging-input  all  --  anywhere             anywhere
ufw-reject-input  all  --  anywhere             anywhere
ufw-track-input  all  --  anywhere             anywhere

Chain FORWARD (policy DROP)
target     prot opt source               destination
DOCKER-USER  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-1  all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere             ctstate RELATED,ESTABLISHED
DOCKER     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ACCEPT     all  --  anywhere             anywhere
ufw-before-logging-forward  all  --  anywhere             anywhere
ufw-before-forward  all  --  anywhere             anywhere
ufw-after-forward  all  --  anywhere             anywhere
ufw-after-logging-forward  all  --  anywhere             anywhere
ufw-reject-forward  all  --  anywhere             anywhere
ufw-track-forward  all  --  anywhere             anywhere

Chain OUTPUT (policy ACCEPT)
target     prot opt source               destination
ufw-before-logging-output  all  --  anywhere             anywhere
ufw-before-output  all  --  anywhere             anywhere
ufw-after-output  all  --  anywhere             anywhere
ufw-after-logging-output  all  --  anywhere             anywhere
ufw-reject-output  all  --  anywhere             anywhere
ufw-track-output  all  --  anywhere             anywhere

Chain DOCKER (8 references)
target     prot opt source               destination
ACCEPT     tcp  --  anywhere             172.18.0.2           tcp dpt:9443
ACCEPT     tcp  --  anywhere             172.18.0.2           tcp dpt:9000
ACCEPT     tcp  --  anywhere             192.168.80.2         tcp dpt:mysql
ACCEPT     tcp  --  anywhere             192.168.16.2         tcp dpt:8025

Chain DOCKER-ISOLATION-STAGE-1 (1 references)
target     prot opt source               destination
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
DOCKER-ISOLATION-STAGE-2  all  --  anywhere             anywhere
RETURN     all  --  anywhere             anywhere

Chain DOCKER-ISOLATION-STAGE-2 (8 references)
target     prot opt source               destination
DROP       all  --  anywhere             anywhere
DROP       all  --  anywhere             anywhere
DROP       all  --  anywhere             anywhere
DROP       all  --  anywhere             anywhere
DROP       all  --  anywhere             anywhere
DROP       all  --  anywhere             anywhere
DROP       all  --  anywhere             anywhere
DROP       all  --  anywhere             anywhere
RETURN     all  --  anywhere             anywhere

Chain DOCKER-USER (1 references)
target     prot opt source               destination
RETURN     all  --  anywhere             anywhere

Chain ufw-after-forward (1 references)
target     prot opt source               destination

Chain ufw-after-input (1 references)
target     prot opt source               destination
ufw-skip-to-policy-input  udp  --  anywhere             anywhere             udp dpt:netbios-ns
ufw-skip-to-policy-input  udp  --  anywhere             anywhere             udp dpt:netbios-dgm
ufw-skip-to-policy-input  tcp  --  anywhere             anywhere             tcp dpt:netbios-ssn
ufw-skip-to-policy-input  tcp  --  anywhere             anywhere             tcp dpt:microsoft-ds
ufw-skip-to-policy-input  udp  --  anywhere             anywhere             udp dpt:bootps
ufw-skip-to-policy-input  udp  --  anywhere             anywhere             udp dpt:bootpc
ufw-skip-to-policy-input  all  --  anywhere             anywhere             ADDRTYPE match dst-type BROADCAST

Chain ufw-after-logging-forward (1 references)
target     prot opt source               destination

Chain ufw-after-logging-input (1 references)
target     prot opt source               destination

Chain ufw-after-logging-output (1 references)
target     prot opt source               destination

Chain ufw-after-output (1 references)
target     prot opt source               destination

Chain ufw-before-forward (1 references)
target     prot opt source               destination
ufw-user-forward  all  --  anywhere             anywhere

Chain ufw-before-input (1 references)
target     prot opt source               destination
ufw-user-input  all  --  anywhere             anywhere

Chain ufw-before-logging-forward (1 references)
target     prot opt source               destination

Chain ufw-before-logging-input (1 references)
target     prot opt source               destination

Chain ufw-before-logging-output (1 references)
target     prot opt source               destination

Chain ufw-before-output (1 references)
target     prot opt source               destination
ufw-user-output  all  --  anywhere             anywhere

Chain ufw-logging-allow (0 references)
target     prot opt source               destination

Chain ufw-logging-deny (0 references)
target     prot opt source               destination

Chain ufw-reject-forward (1 references)
target     prot opt source               destination

Chain ufw-reject-input (1 references)
target     prot opt source               destination

Chain ufw-reject-output (1 references)
target     prot opt source               destination

Chain ufw-skip-to-policy-forward (0 references)
target     prot opt source               destination
DROP       all  --  anywhere             anywhere

Chain ufw-skip-to-policy-input (7 references)
target     prot opt source               destination
DROP       all  --  anywhere             anywhere

Chain ufw-skip-to-policy-output (0 references)
target     prot opt source               destination
ACCEPT     all  --  anywhere             anywhere

Chain ufw-track-forward (1 references)
target     prot opt source               destination

Chain ufw-track-input (1 references)
target     prot opt source               destination

Chain ufw-track-output (1 references)
target     prot opt source               destination
ACCEPT     tcp  --  anywhere             anywhere             ctstate NEW
ACCEPT     udp  --  anywhere             anywhere             ctstate NEW

Chain ufw-user-forward (1 references)
target     prot opt source               destination

Chain ufw-user-input (1 references)
target     prot opt source               destination

Chain ufw-user-limit (0 references)
target     prot opt source               destination

Chain ufw-user-limit-accept (0 references)
target     prot opt source               destination

Chain ufw-user-logging-forward (0 references)
target     prot opt source               destination

Chain ufw-user-logging-input (0 references)
target     prot opt source               destination

Chain ufw-user-logging-output (0 references)
target     prot opt source               destination

Chain ufw-user-output (1 references)
target     prot opt source               destination

[gadget]

Did your previous YAML file include port binding declarations? e.g.:

ports:
      - 8384:8384

Or did you set it as a start up option?

[MrChuw]

Oh my god, I understand what the problem is now. I had tried setting the port before and still couldn’t connect. Then I tried without specifying the port in the YAML file, and I didn’t realize that in the .xml configuration, for some reason, it was set to 127.0.0.1.

And when I changed it to 0.0.0.0, I didn’t realize that I also needed to specify the port again in the YAML file.

Thank you for your help. As usual, user error (? I assume he should have set it to 0.0.0.0, I don’t know why he didn’t).

[gadget]

@MrChuw

Oh my god, I understand what the problem is now. I had tried setting the port before and still couldn’t connect. Then I tried without specifying the port in the YAML file, and I didn’t realize that in the .xml configuration, for some reason, it was set to 127.0.0.1.

It must have been manually changed to 127.0.0.1. Since the YAML file declares image: syncthing/syncthing:latest, it would have reverted back to the default of 0.0.0.0.

And when I changed it to 0.0.0.0, I didn’t realize that I also needed to specify the port again in the YAML file.

Thank you for your help. As usual, user error (? I assume he should have set it to 0.0.0.0, I don’t know why he didn’t).

With --network host and network_mode: host, the container’s network interface is mapped to the host’s. The net effect is that network services in the container are accessible without explicitly binding ports inside the container to the host.

If Syncthing’s config.xml has <address>127.0.0.1:8384</address>, on the host side Syncthing’s web GUI would be accessible at http://127.0.0.1:8384/. And if it’s <address>0.0.0.0:8384</address>, on the host side it would be accessible at http://0.0.0.0:8384/ (perhaps open to the rest of the LAN the host is connected to depending on the host’s firewall settings).

Or in other words, if the YAML file declares this…

network_mode: host

… port bindings aren’t needed:

ports:
	- 8384:8384

But if host network mode isn’t used, then port bindings are required for access outside of the container.
